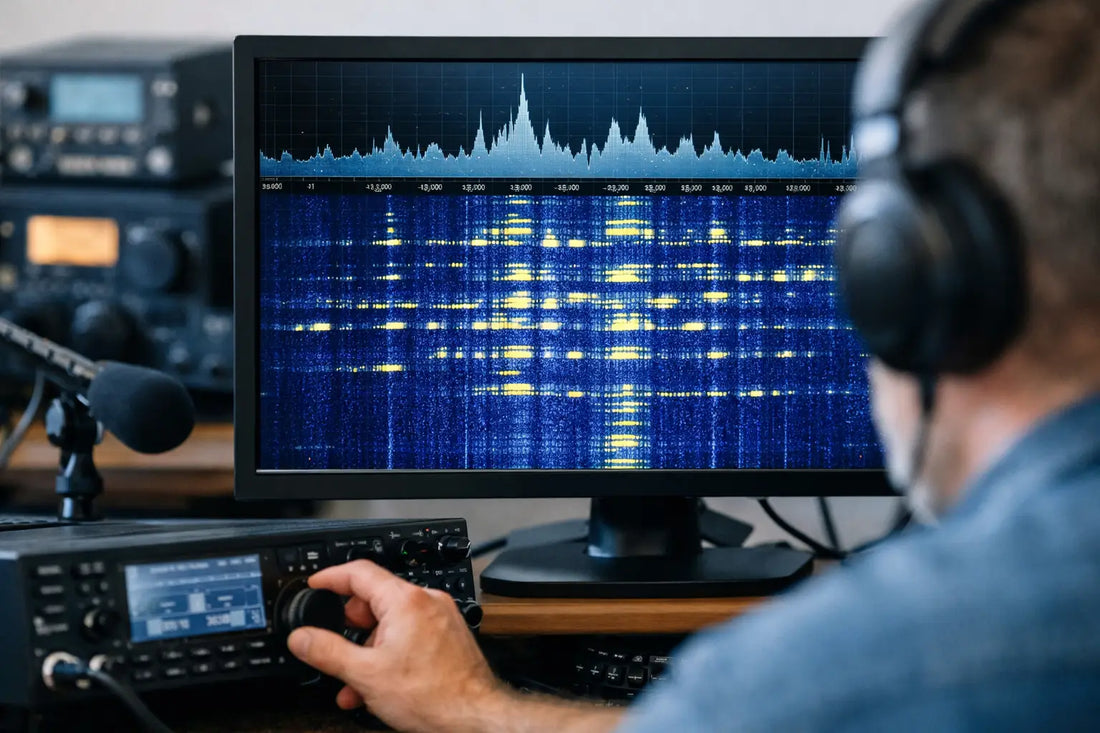

A weak CQ can be nearly invisible in the speaker noise, yet plainly visible on the display. That is the power of reading a CW waterfall: it gives your eyes a second path into the band when your ears are fighting static, adjacent signals, fading, or operator fatigue. For QRP operators especially, the waterfall is not decoration. It is a practical tool for finding usable signals before they disappear.
A waterfall will not replace good operating judgment or trained ears. It will, however, show where energy is landing, how a signal behaves over time, and whether your receiver is centered where it needs to be. Used correctly, it can turn a frustrating search through an apparently empty band into a clean, efficient CW contact.
What a CW waterfall is actually showing you
A waterfall is a scrolling visual history of received audio or radio-frequency energy. Frequency runs left to right. Time moves from top to bottom on most displays, though some radios and software reverse that direction. Signal strength is represented by color or brightness: dark background is low-level noise, while brighter yellow, red, white, or blue traces indicate stronger energy, depending on the display palette.
On a CW receiver waterfall, a keyed carrier usually appears as a series of short vertical marks at one frequency. A dot creates a short mark. A dash creates a longer one. The gaps between elements and characters appear as dark spaces. At a slow sending speed, the pattern can look surprisingly readable. At 25 WPM or faster, the individual elements compress into a more continuous striped trace.
The key point is this: the waterfall shows that a signal exists and where it is. It does not guarantee that the signal is readable. A bright trace may be a nearby station, a digital mode, an electronic birdie, or interference. A faint trace may be a perfectly workable CW signal if your filter and gain are set properly.
Reading a CW waterfall without chasing ghosts
Begin by learning the visual difference between a real CW station and common band clutter. A genuine CW signal will key on and off with a purposeful rhythm. You may see the familiar short-and-long pattern of dots and dashes, along with longer pauses between words. Even if the sender is too weak for instant copy, the transmission usually has a human cadence.
A steady vertical line that never keys is not CW. It may be a receiver artifact, a carrier, or a constant digital signal. Broad fuzzy areas usually point to noise, overdriven audio, wide digital modes, or nearby strong signals. Multiple evenly spaced lines can indicate an overload condition or a local source of interference.
Watch the trace for a few seconds before touching the tuning knob. Is it drifting? Is it fading in and out? Does it come up every few minutes in the same spot? A real station calling CQ may transmit in predictable cycles. A noise source often has no meaningful cadence at all.
Your ears remain the final authority. Use the waterfall to locate the signal, then listen closely. If it sounds like CW and keys with a coherent rhythm, you have a target. If it only looks promising, keep investigating before you call.
Know which frequency you are looking at
One of the most common mistakes is confusing displayed frequency with the actual transmit frequency. Many CW operators tune the receiver so the station produces an audio tone around 400 to 800 Hz. That means a station shown 600 Hz above your receiver reference is heard as a 600 Hz tone.
Whether the displayed number represents the station’s actual RF frequency, the receiver center frequency, or an audio offset depends on the radio and the mode settings. USB, LSB, CW, and CW reverse can change the relationship. Never assume that clicking on a trace automatically puts you exactly on the other operator’s frequency.
The reliable method is simple: tune the trace to your preferred CW pitch, listen for the clearest tone, and verify your transmit offset before calling. If your rig has a spot function, use it. If it has a sidetone adjustment, make sure your listening pitch and transmit pitch agree. A beautiful waterfall trace does no good if your reply lands several hundred hertz away.
Set the display so weak CW can stand out
A waterfall that is too sensitive becomes a glowing wall of noise. One that is too insensitive hides the weak stations you are trying to work. The right setting depends on band conditions, antenna noise, preamp use, and receiver architecture, so there is no universal color threshold.
Start with the RF gain, preamp, and attenuation settings appropriate for the band. On a quiet portable location, a preamp may reveal weak signals. On a crowded evening band with a large antenna, it can raise the noise floor and make the display harder to use. If strong nearby stations create wide splatter or duplicate images, reduce gain or add attenuation before blaming the waterfall.
Then adjust the waterfall range and reference level. You want a mostly dark background with visible, distinct signal traces. Weak CW should appear as faint but recognizable keyed marks. Strong signals should be bright without turning into thick, featureless columns. If your display has averaging, moderate averaging can make weak traces easier to see, but too much will smear fast code and conceal brief calls.
The span matters as much as the colors. A wide span is excellent for surveying a band segment and finding activity. A narrow span gives more detail and helps you separate closely spaced stations. When you find a possible contact, narrow the view, reduce your receive bandwidth, and let the signal tell you what it can support.
Use the waterfall to choose a clean calling spot
Before sending CQ, look for more than an empty-looking line. Check the surrounding area over time. A frequency can appear clear during the two seconds you glance at it, then reveal itself as someone else’s QSO during the next transmission cycle.
Watch for weak traces just above and below your intended frequency. On a crowded band, giving another operator a little room is good operating practice and improves your own chance of being copied. A narrow CW filter may make an adjacent station seem absent in the speaker, while the waterfall reveals that the space is not truly open.
This is particularly valuable for low-power field operation. A QRP signal does not need help from an unnecessary pileup of nearby interference. Choose a clean slot, call at a sensible speed, and keep your listening discipline sharp. A quieter frequency often delivers more than a few extra watts ever will.
Follow fading, drift, and interference patterns
The waterfall earns its keep when conditions get difficult. A fading station may alternate between bright, readable bursts and nearly invisible traces. Instead of abandoning the contact immediately, watch the pattern. If the signal rises every few seconds, wait for the peak before responding. If the station is readable only during a particular part of the fade cycle, slow down and send concise exchanges.
Drift is also obvious visually. A station that slowly leans across the display is moving in frequency. This may come from a warming transmitter, an older receiver, or propagation effects. You can compensate by gently tracking it rather than repeatedly retuning from scratch. A stable station produces a straight vertical line; a drifting one draws a slanted path.
Interference has patterns too. A pulsing noise source may create repeating broad flashes. A nearby signal can throw a bright skirt across your target. A narrowband noise spike can sit directly on top of the CW tone. The right response depends on the problem: shift your pitch, tighten the filter, reduce RF gain, use a noise blanker cautiously, or move to a cleaner frequency.
Noise reduction is not automatically a win. Aggressive processing can distort CW timing, smear the leading edge of elements, or create artifacts that look convincing on a waterfall. Use only enough processing to improve copy. The objective is intelligible Morse, not the prettiest screen.
Pair visual signal hunting with better CW copy
A waterfall helps you find and isolate the signal. Copy still depends on bandwidth, signal-to-noise ratio, operator skill, and the quality of your receiver. Keep your CW filter as narrow as conditions allow, but not so narrow that drift or imperfect tuning clips the signal. For many contacts, a few hundred hertz is a useful working range. In severe crowding, narrower may be better. In fast-moving portable work or unstable conditions, slightly wider can be more forgiving.
Modern decoder intelligence can add another layer of awareness when the band is messy. MorseNexus equipment built around context-aware CW decoding is designed for exactly that problem: helping operators identify and interpret real signals without treating decoding as an afterthought. But even the best decoder benefits from a properly centered signal and a sensible filter.
Practice on known strong stations. Watch their element spacing while listening to their sidetone. Then compare slow, clean sending with fast contest exchanges, weak DX, and stations affected by fading. Before long, your eyes will recognize a CQ, a calling pileup, or a drifting signal before your hand reaches the dial.
The next time the band sounds empty, do not just turn up the volume. Scan the waterfall, find the faint keyed trace, center it with purpose, and listen for the operator on the other end. That small habit can be the difference between missed noise and a real CW contact.
